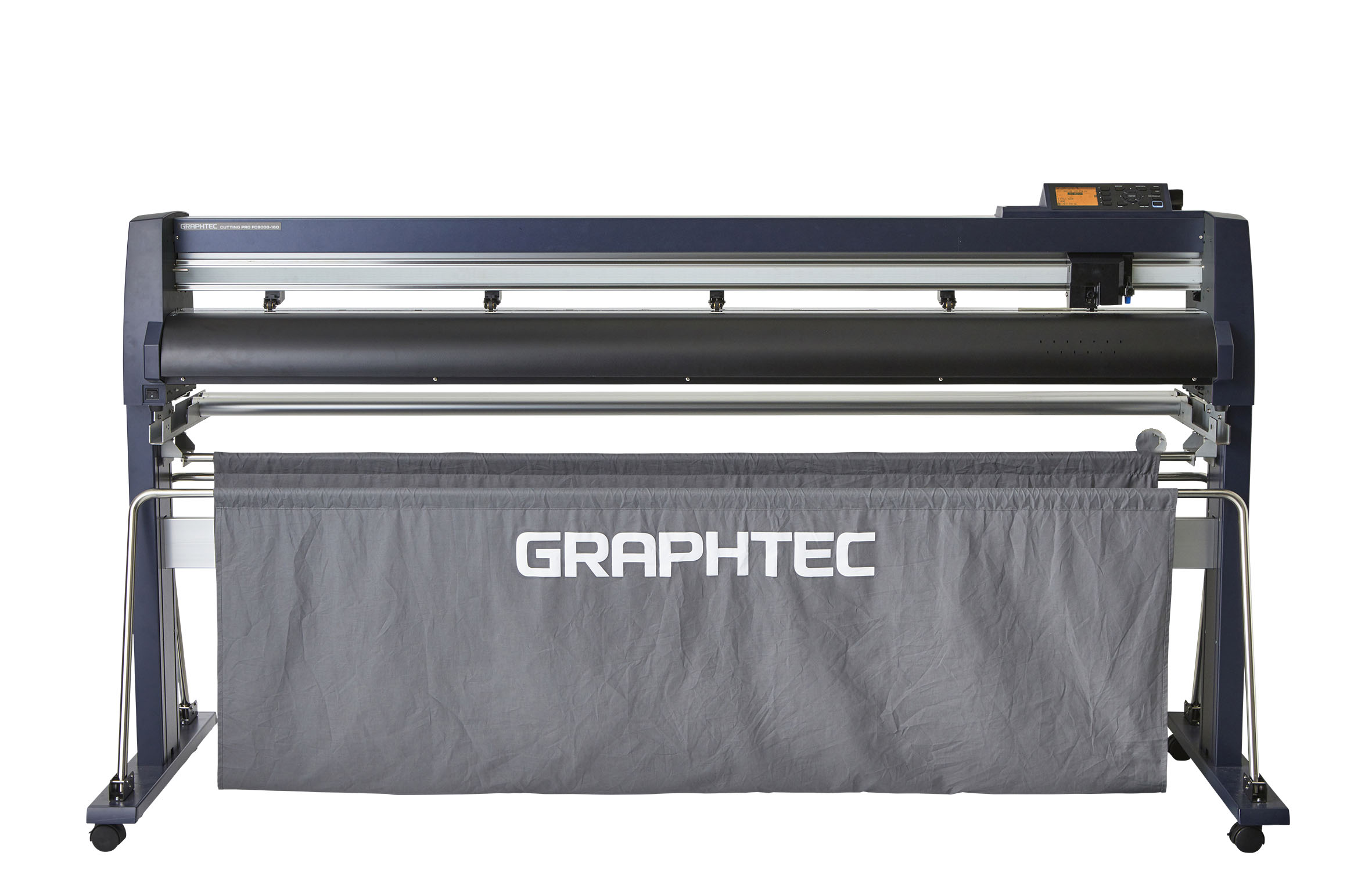

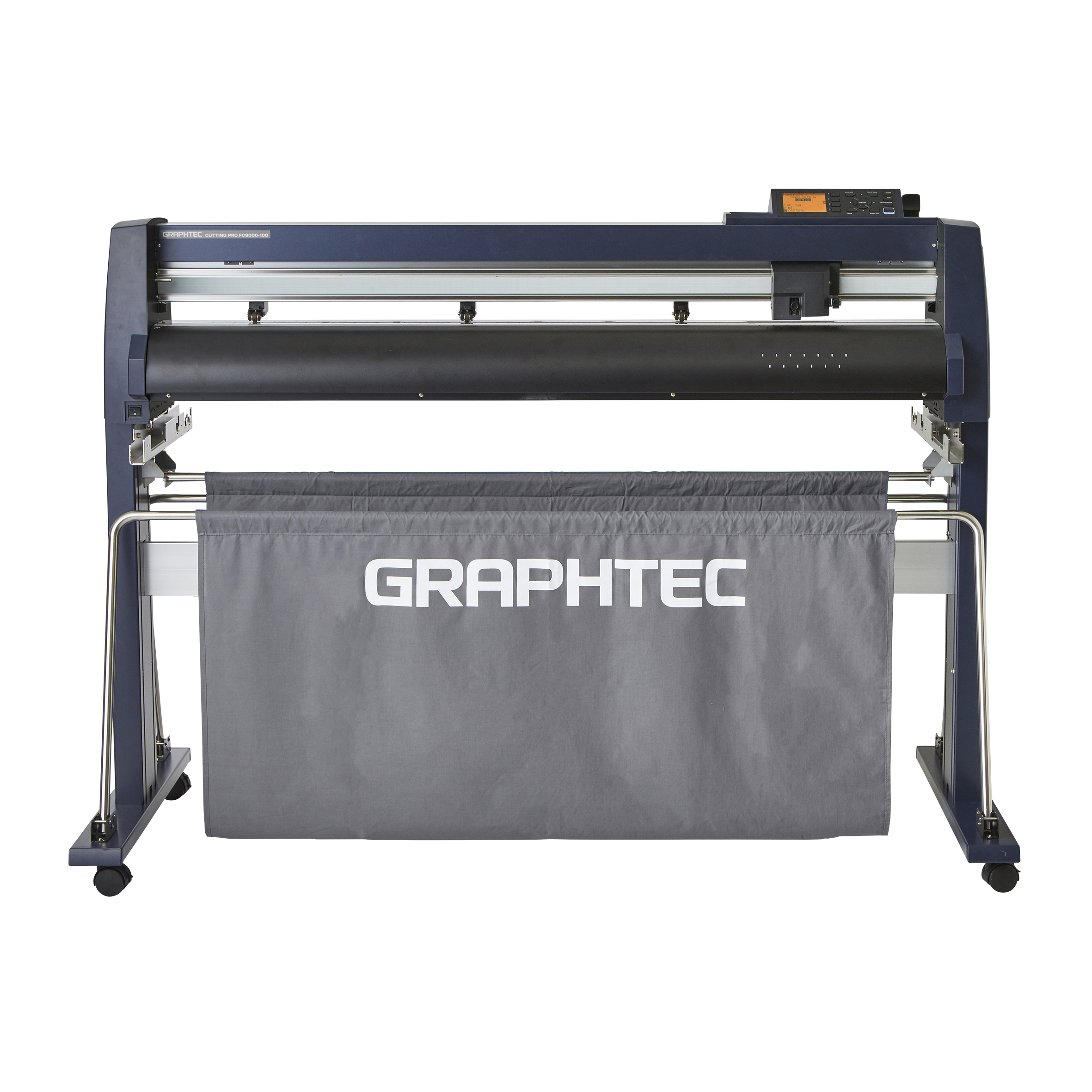

FC9000 Series
|
|
|
|

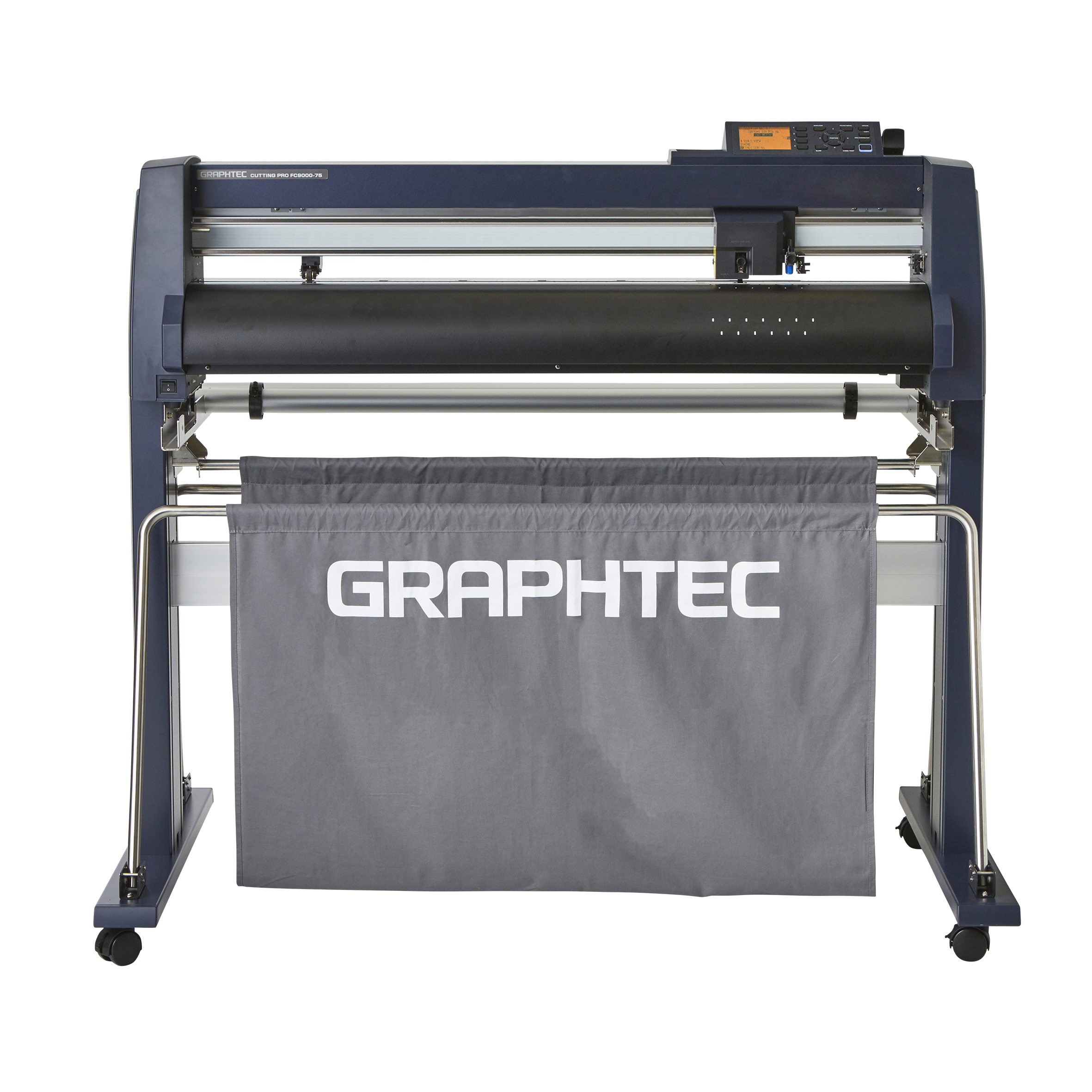

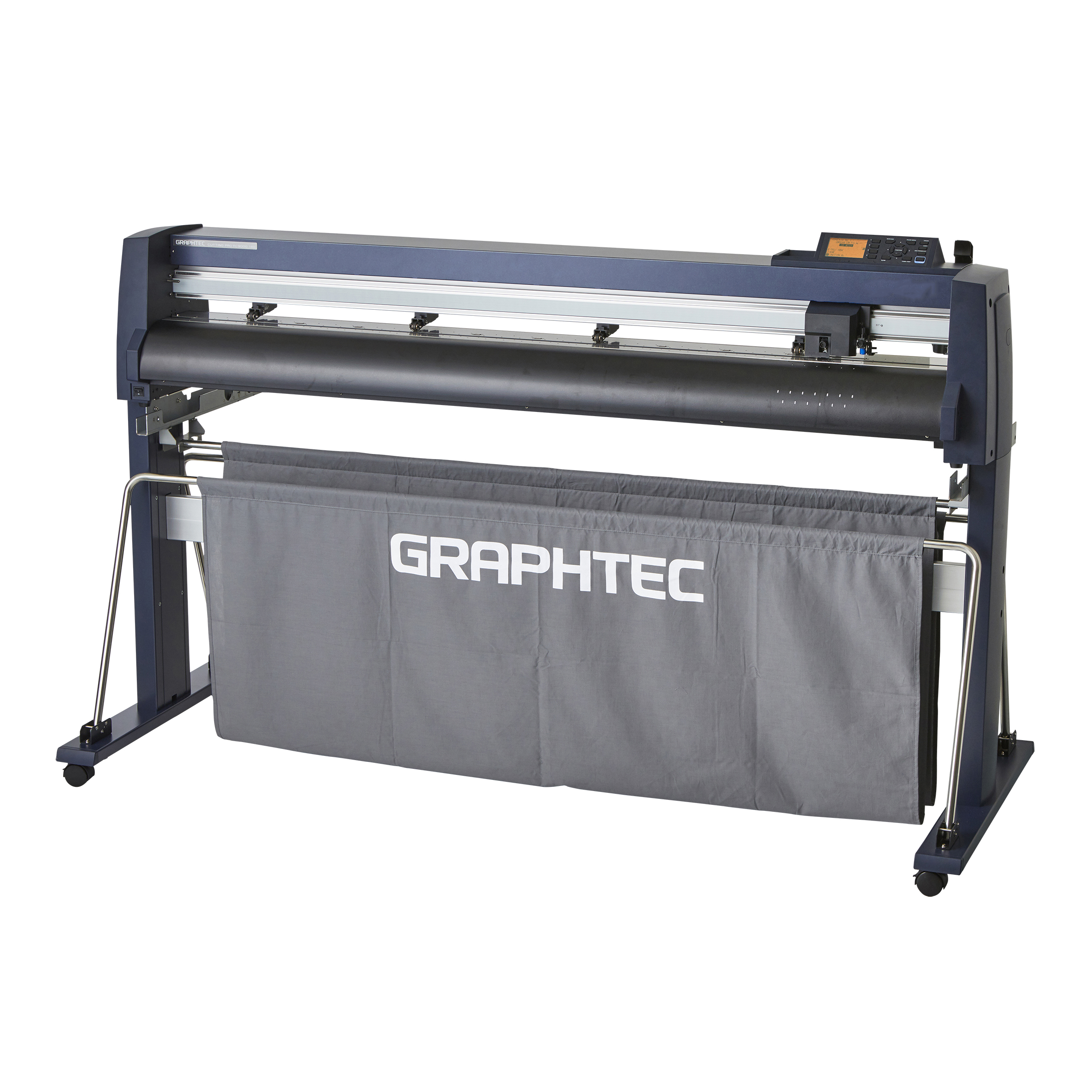

| FC9000-75 | FC9000-100 | FC9000-140 | FC9000-160 |
The Graphtec FC9000 Series was introduced on 20191022 as the upgraded version of the FC8600 Series. It is similar to the FC8600 machines, but with the following improvements and changes:
- Barcode Reading capability
- New media basket system and included media flanges
- New grit roller configuration for longer tracking
- New USB datalink for running the FC9000 from a USB drive
- New ARMS 8.0 version for print and cut.
- Blade setup loupe included
- Optional take-up reel for the FC9000-140 and FC9000-160
- 130cm model has increased in size to 140cm. 60cm model is no longer offered.
- Roll Load Capacity: 160cm = 24kg, 140cm = 20kg, 100cm = 16kg, 75cm = 12kg
FC9000 Series FAQ's:
|
|
|
|
|
|
|
|
| FC9000 Series | FC9000 Brochure | FC9000 Features | FC9000 FAQ | FC9000 Series Specs | FC9000 Improvements | FC9000 Blades | FC9000 Prismatic |
FC9000 Series Vids:
|
|
|
|
| FC9000 Overview Vid | FC9000 Take-Up Reel | FC9000 Barcode Reader | FC9000 Barcode Step By Step |
|
|
| FC Media Flanges | FC9000 Face Shield Cutting |

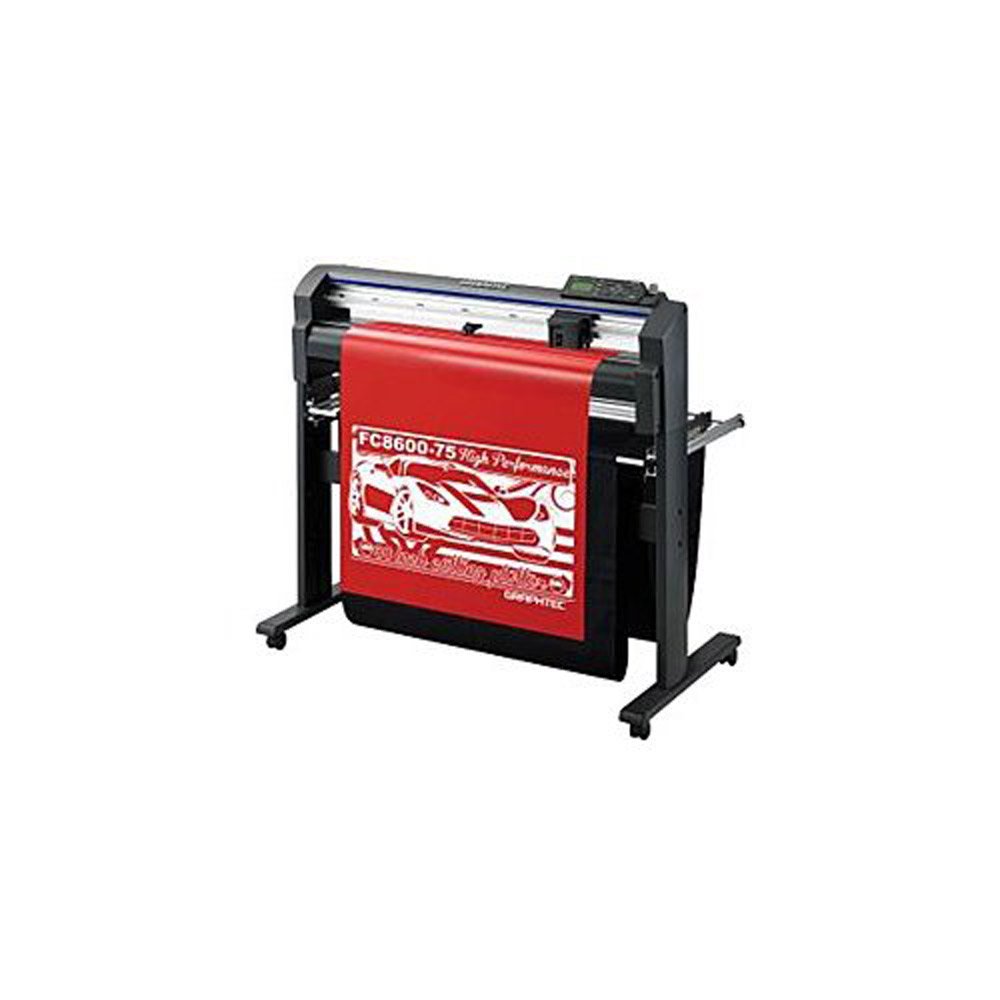

FC8600 Series
|
|
|
|
|

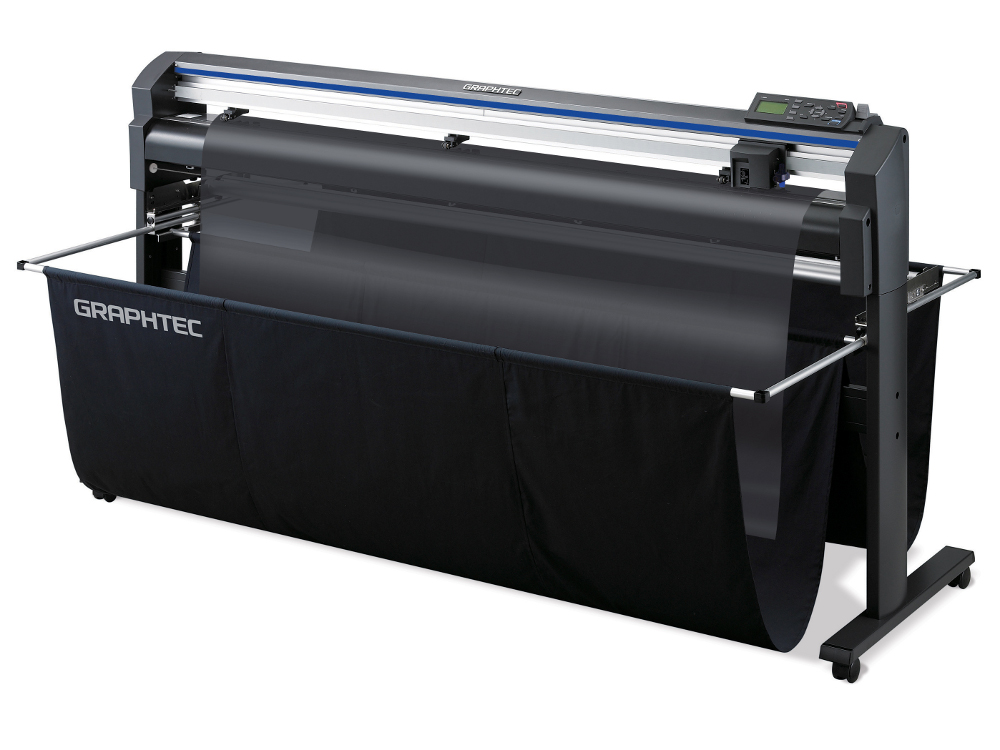

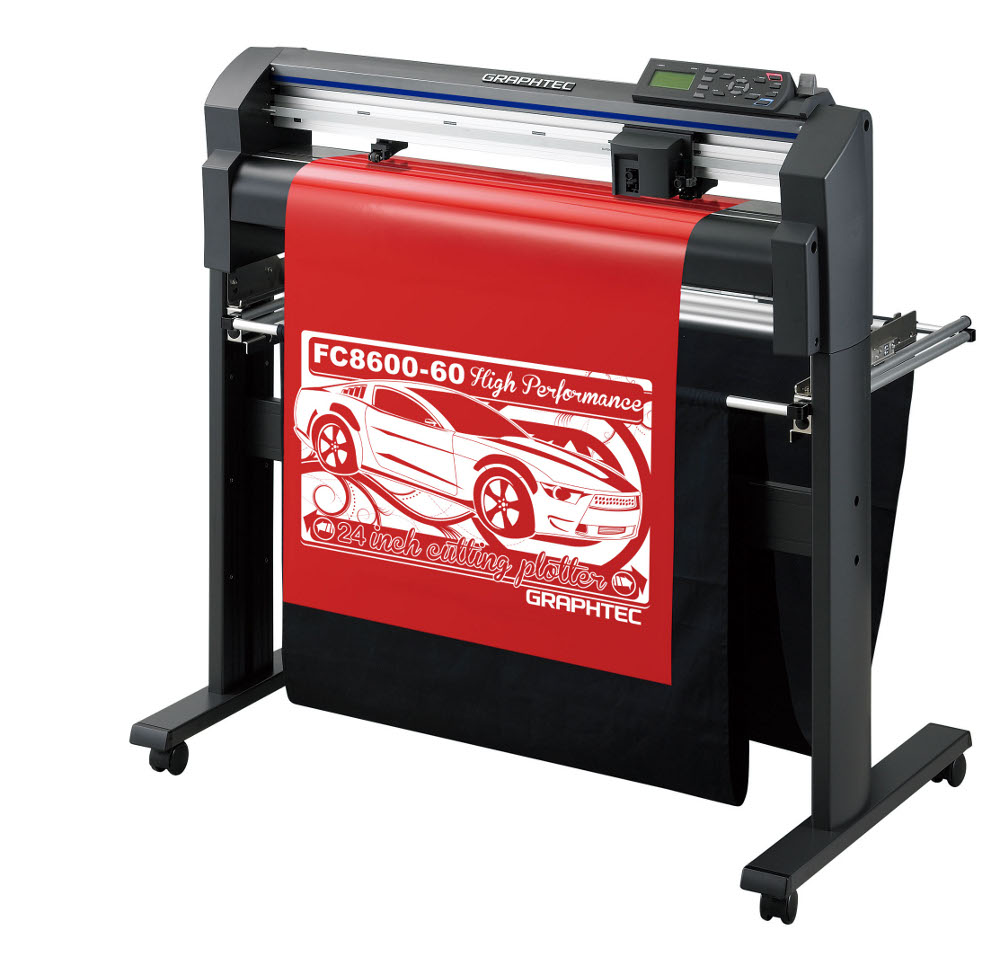

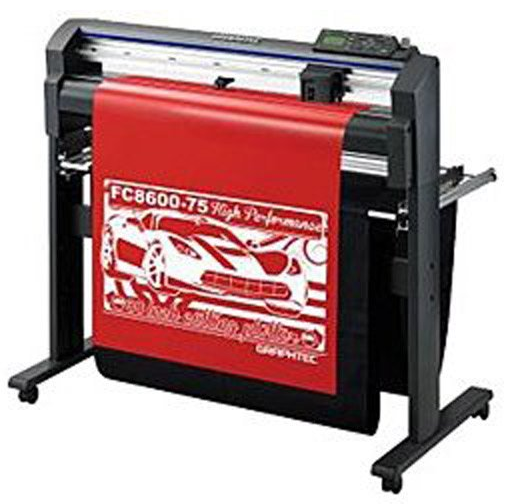

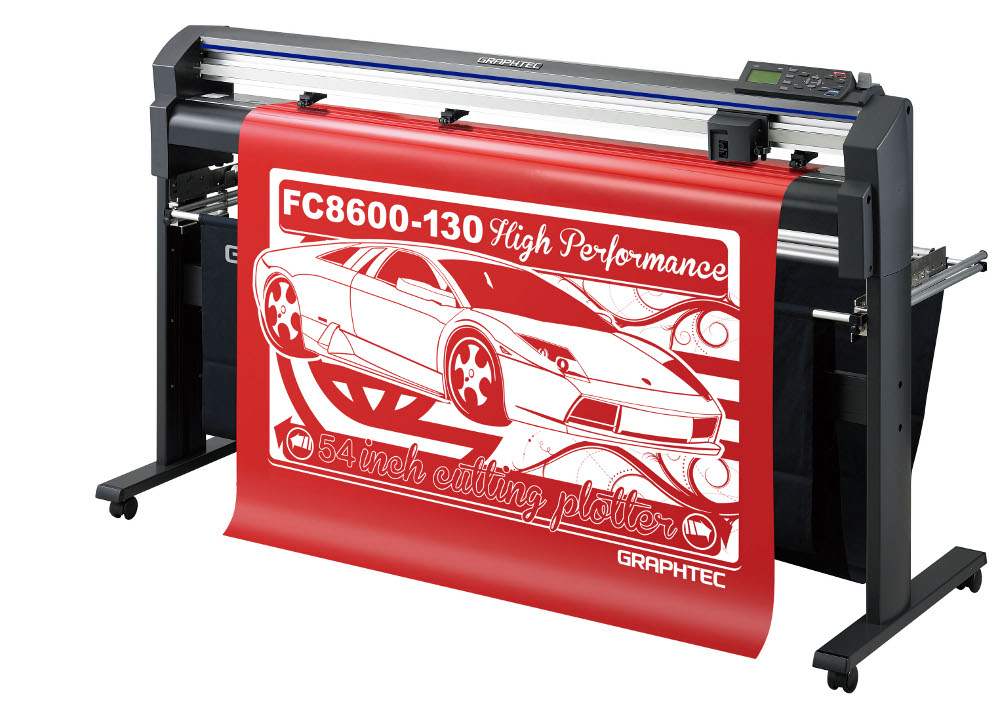

| FC8600-160 | FC8600-130 | FC8600-100 | FC8600-75 | FC8600-60 |
The Graphtec FC8600 Series was introduced on 20130701 as the upgraded version of the FC8000 Series. Improvements include:
- Built-in Ethernet, in addition to USB and RS-232 Serial
- Improved Accuracy built into the upgraded firmware
- Cutting Master 4 and Graphtec Pro Studio bundled software, both backwards compatible to the FC8000 and FC7000MK2.
- Graphtec Pro Studio Plus is an optional package (primarily for nesting)
- Cutting Master 3 and Graphtec Studio also still available and supported.
- Windows and Mac ports of the Graphtec Studio package
- Maximum 600 gram force capability
- 58.5 in/sec (1485 mm/sec) maximum cutting speed
- 4.0G maximum accelleration
- Catch-Bag and Stand Included

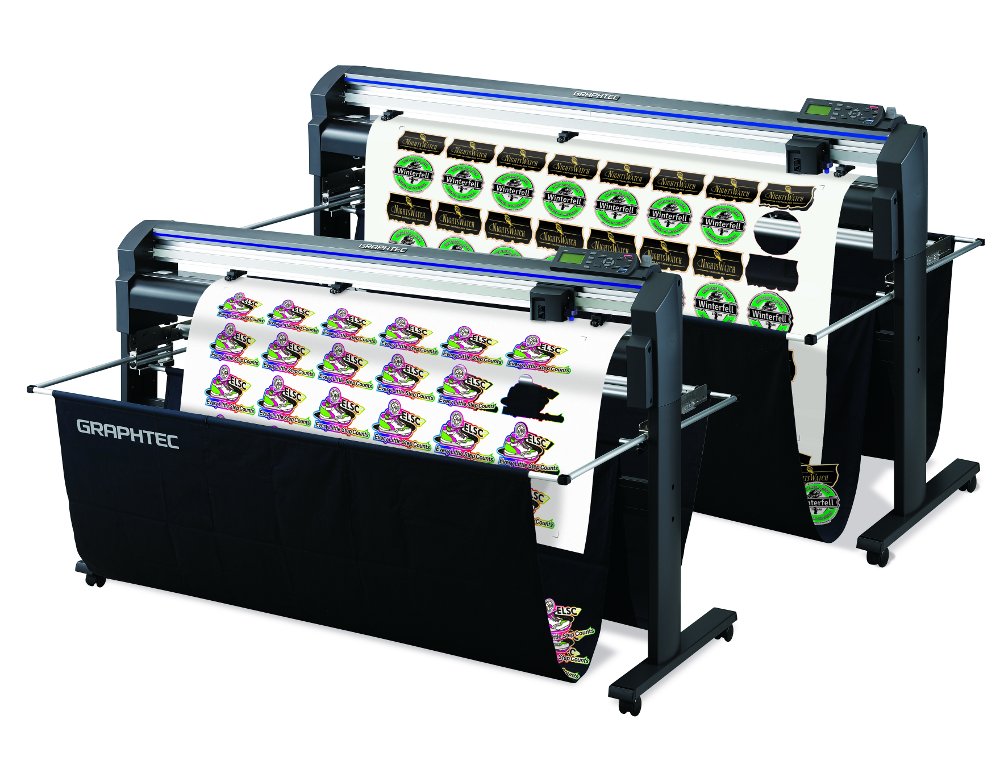

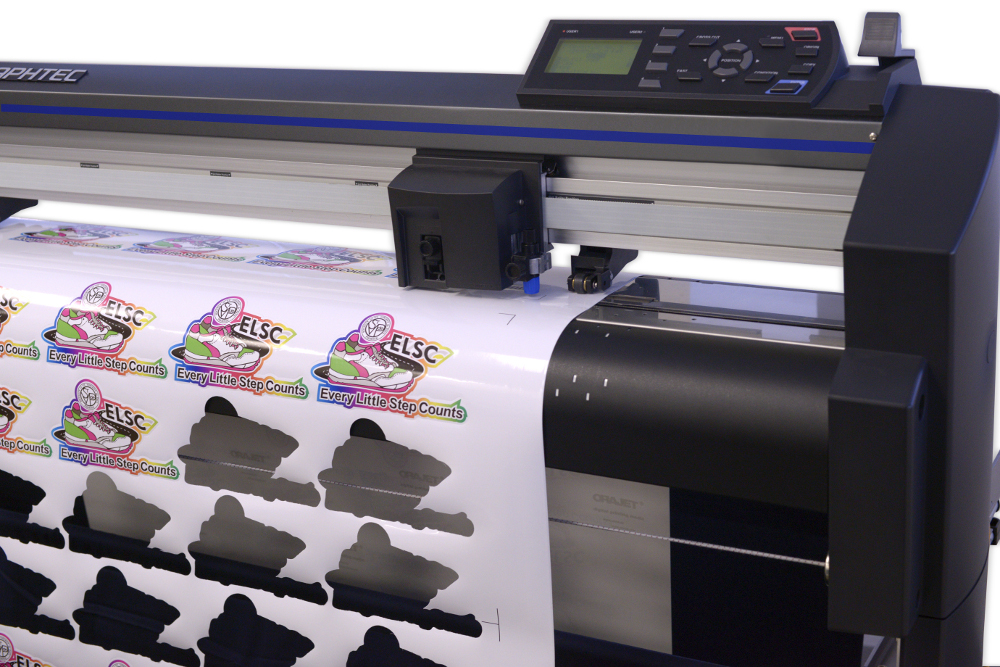

- Perf-Cut Capability
- Pounce Tool Capability
- Included pen holder

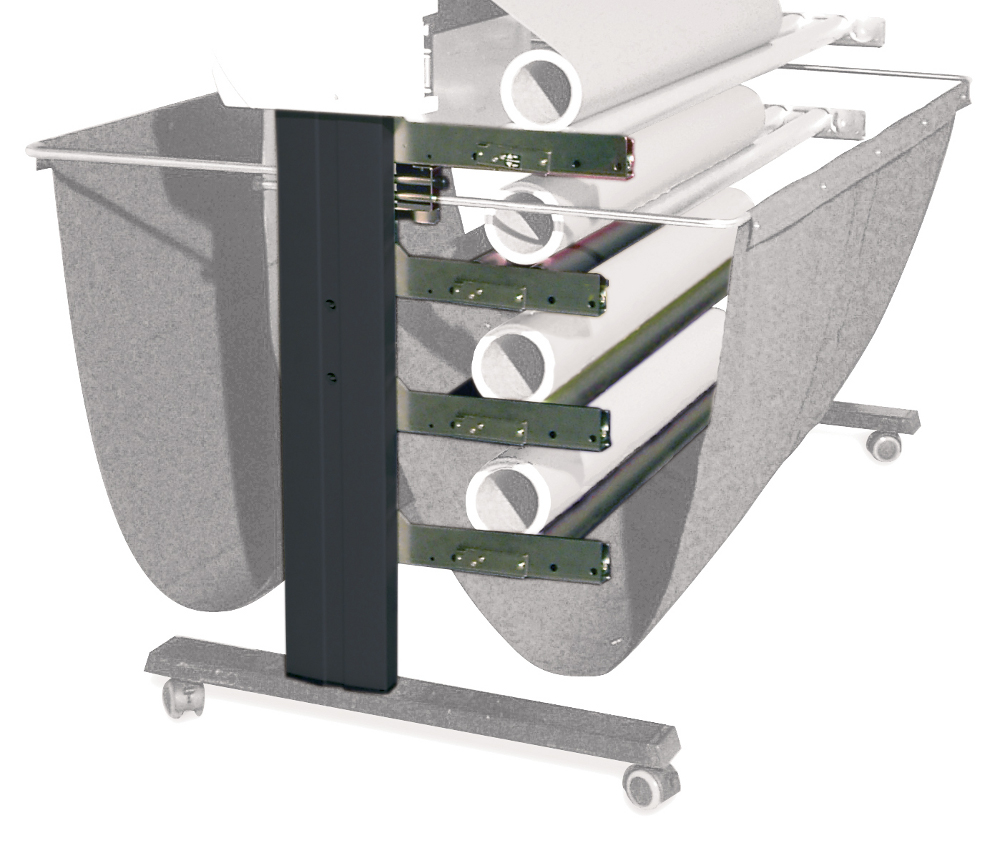

- Multiple Rear Media Carriage Option
|
|
|
|
|
| BROCHURE | INTRO | SETUP | USERS | FC8600 SERIES VID |
|
|
|
|
|
| MULTIPLE-MEDIA | PERF-CUT | PERF-CUT CLOSE-UP | WINDOW TINT VID | PRINT/CUT VID |
|
|
|
|
| ADD ROLLERS | HOLDERS | ROLL FEED | MEDIA FLANGE VID |
FC Series Timeline
- FC9000 Introduction: 20191022
- FC8600 Introduction: 20130222
- FC7000MK2 Introduction: 20070711
- FC7000 Introduction: 20050621
