3DTechnics Cutter/Graver Page
Choose the type of cutter/graver from the list below and click to get details and pricing

The terminology for tooling we use includes "gravers", "cutters", and "mills". In general:

Gravers are top-load tools that leave a mark on the surface, but don't cut through (see tool details below).
Cutters are top-load tools that can cut all the way through the material, or a portion of it (see tool details below).
Mills are bottom-load tools that are for taking out large amounts of material. Usually these are used on milling machines, but they can also be used on some of the larger engraving machines.
1. long endmills 100% carbide and extra-long for use in milling machines such as the Roland MDX series and some of the larger EGX series models. The metric and inch-measurement tools below are generally in stock.
2. standard endmills below are designed for use on both milling machines and engraving machines like the Roland EGX line. These are Roland OEM'd endmills - pricing is based on Roland's list. Please call on pricing on these, and for sizes which aren't on our list.
3. twist mills Twist Mills are bottom-load or top-load tools for wax. They have a long twist for removing wax particles from the cut zone.

Knob Types

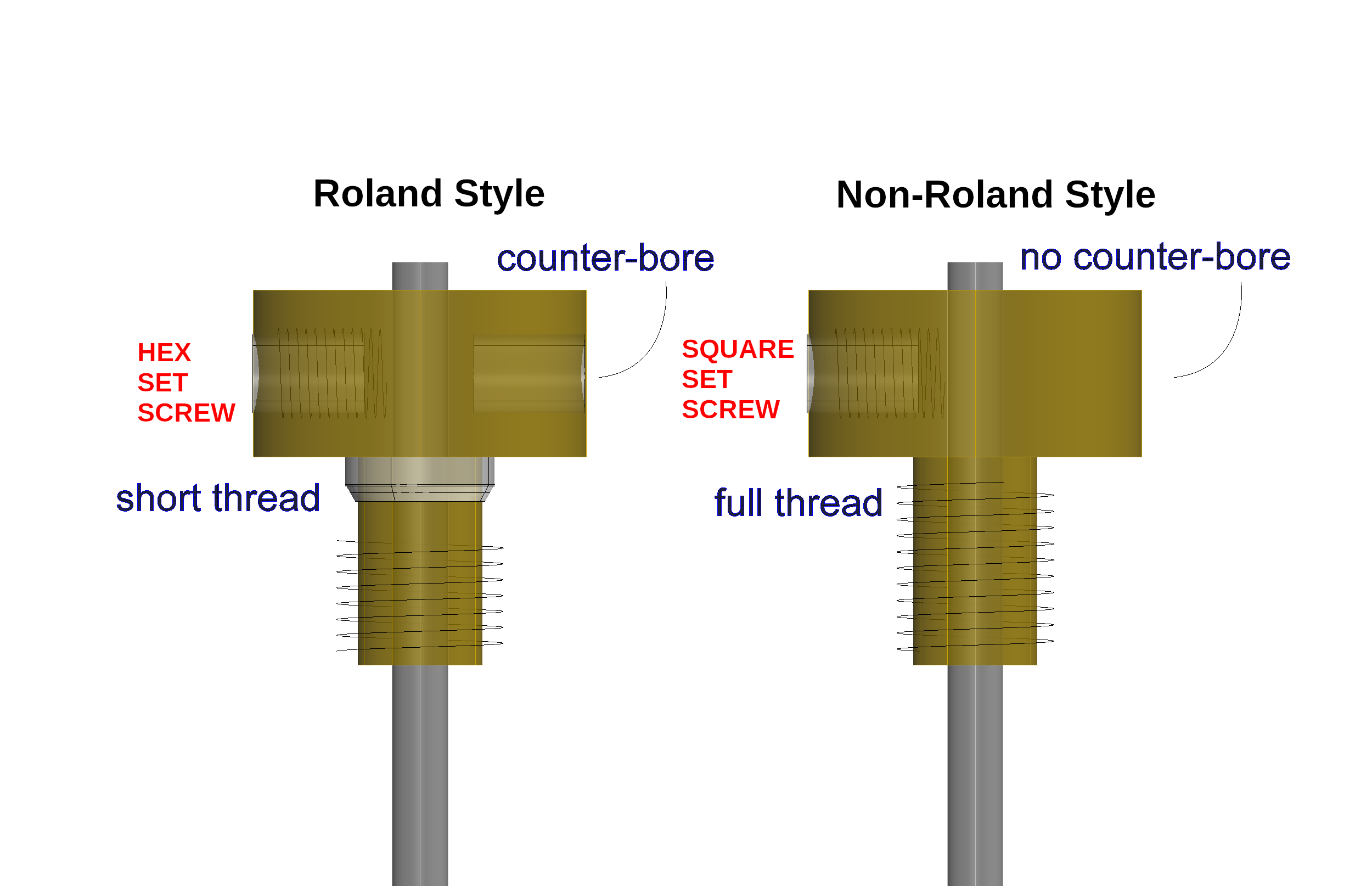

There are two types of knobs available for gravers. The older standard-threaded graver (all manufacturers other than Roland) and the Roland knobs. The Roland knobs feature a counter-bore and tapered head/shorter thread and are available for 1/8" and 11/64" gravers. The 11/64 tools are generally interchangeable with Roland and other manufacturers. 1/8 and are not interchangeable.

Current pricing on Roland knobs is $3.60 USD each.
Current pricing on Standard knobs is $2.00 USD each.

INDEX

End Mill Page

Twist Mill Page

MDX Faq Page

DE-3 Engraver Faq Page

Standard Flex	Carbide	IN STOCK	Standard 30° carbide cutters for use on plastics and wood.

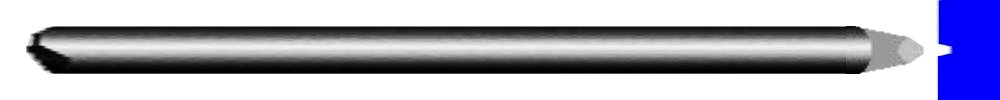

Burnishers	Carbide	IN STOCK	Burnishing gravers for metal surface marking

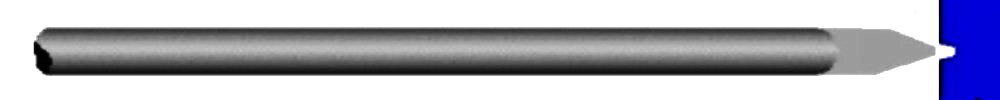

Brass/Aluminum	Carbide	IN STOCK	40° tipped FLX tools for Brass and Aluminum
Quarter Round	Carbide	IN STOCK	Quarter Round cutters for Stainless Steel

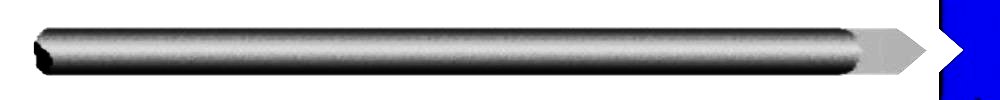

Beveller	Carbide	IN STOCK	Bevel Cutter for bevelling 45°

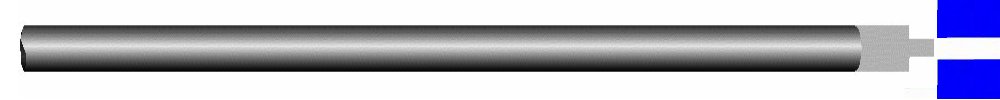

Parallel	Carbide	IN STOCK	Parallel cutters for straight edges

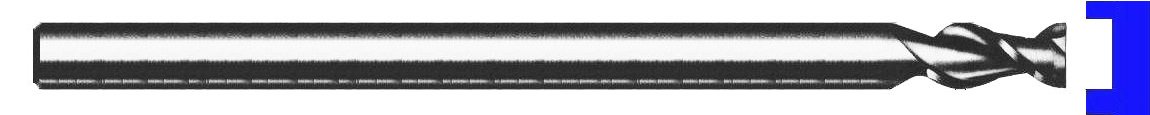

Router Mills	Carbide	IN STOCK	1F and 2F Router Mills

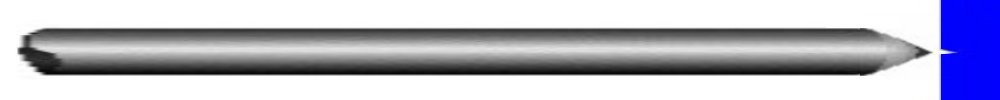

Diamond Drag	HSS Diamond	IN STOCK	Non-rotating diamond for metal scoring

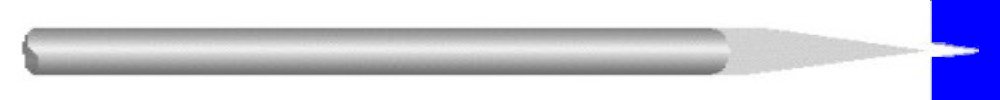

Profilers	HSS Carbide	IN STOCK	Low-angle cutting: HSS for wax, Carbide for metals/dovetails

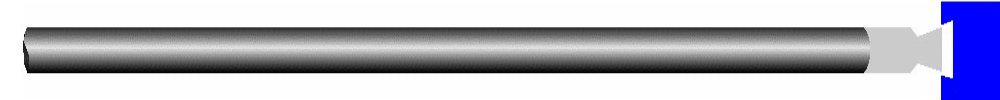

Dove Tail	Carbide	IN STOCK	Cutters for making angled undercuts

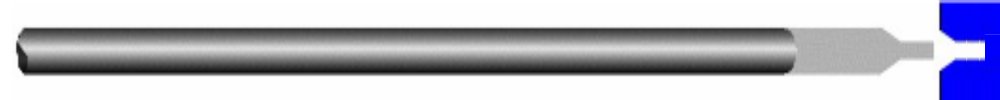

Cutter-Beveller	Carbide	IN STOCK	Cutters for cutting out or making odd shaped items

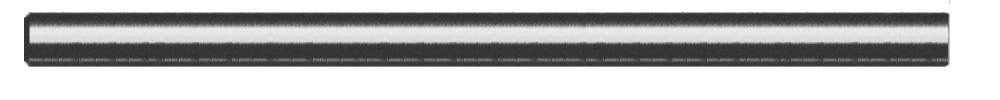

Blank Rods	Carbide	IN STOCK	Blank Rods - Unsharpened

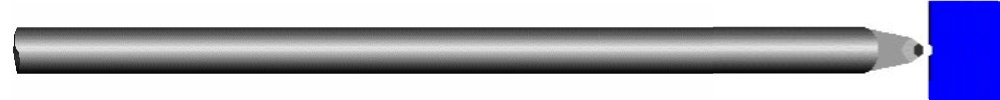

Rotating Diamond	HSS Diamond	IN STOCK	Diamond tipped HSS cutters: Glass, Burnishing, Anodized Al.

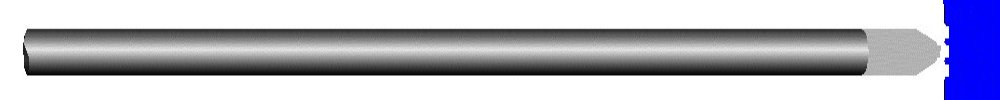

ADA Braille Dot	Carbide	IN STOCK	Carbide tools for cutting out braille dots.

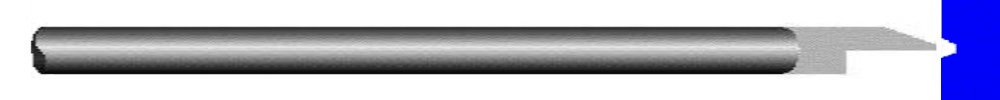

ADA CutOut	Carbide	IN STOCK	Quarter-Round Cutters for ADA Braille Edges

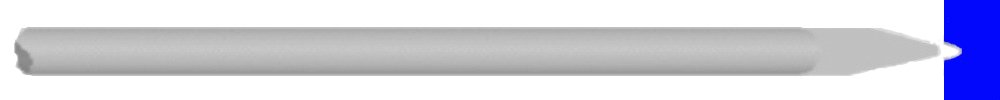

High Speed	HSS	SPECIAL ORDER	HSS Cutters for flexibility
Ball Nose	Carbide	SPECIAL ORDER	Carbide tools with radiased tips for reverse engraving

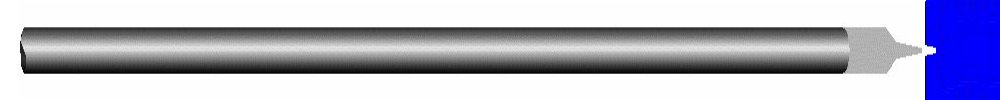

3D Profile	Carbide	SPECIAL ORDER	Carbide tools with long narrow angles used for deep reverse cuts

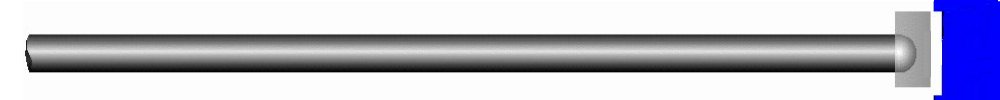

Wide Cut	Carbide	SPECIAL ORDER	Carbide cutters with wider cut diameters than shank diameters

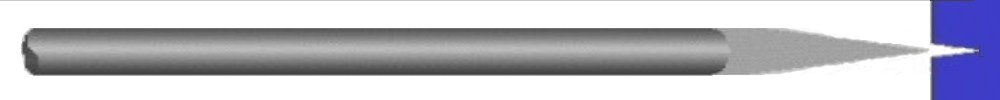

Rubber Stamp	Carbide	SPECIAL ORDER	Carbide cutters for engraving rubber stamp matrix material.

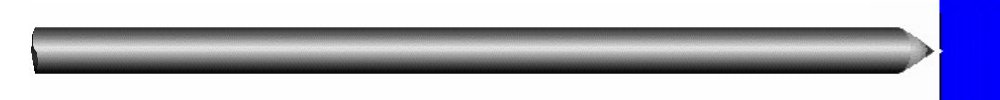

Pen Diamond	Diamond	SPECIAL ORDER	Diamond tipped cutters used on bare and epoxy-coated pens.

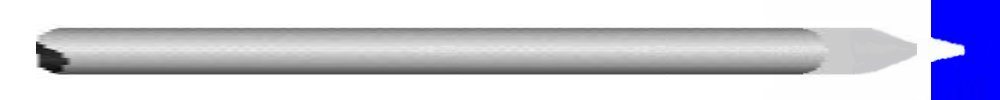

Seal Die	HSS	SPECIAL ORDER	High Speed Steel cutters designed for enraving seal dies

Notes:

For Roland EGX-series users: The Roland Japan standard graver selection and Roland US standard graver selection have their own numbering systems and have different respective subsets of the graver list here. To order Roland equivalents, check the graver code in the table above and reference the appropriate Antares AC, AS, or DG stock code.

All prices include the standard Roland brass knob, with the exception of burnishers which don't require the knob.

All 11/64” carbides are at minimum “carbide tipped” as per Roland specs. 3DTechnics upgrades this to full carbides where possible.
