The ProtoWizard is an adapter system from Cutting Edge which aims to give the Roland JWX-10 and MDX-40 the capability to produce wax ring blanks. With the arrival of the JWX-30 with its integrated rotary axis and flip mechanism, and the end-of-lifing of the JWX-10, the ProtoWizard has become largely a legacy tool.
The Protowizard may still be used with the MDX-40 as an economical multi-purpose milling system. The MDX-40 will be current as a Roland model for the forseeable future. However, due to the difficulties some customers have had with the protowizard setup we (3DTechnics) recommend that customers purchase the JWX-30 instead, unless they are particularly mechanically inclined.
INDEX
- Protowizard Kit

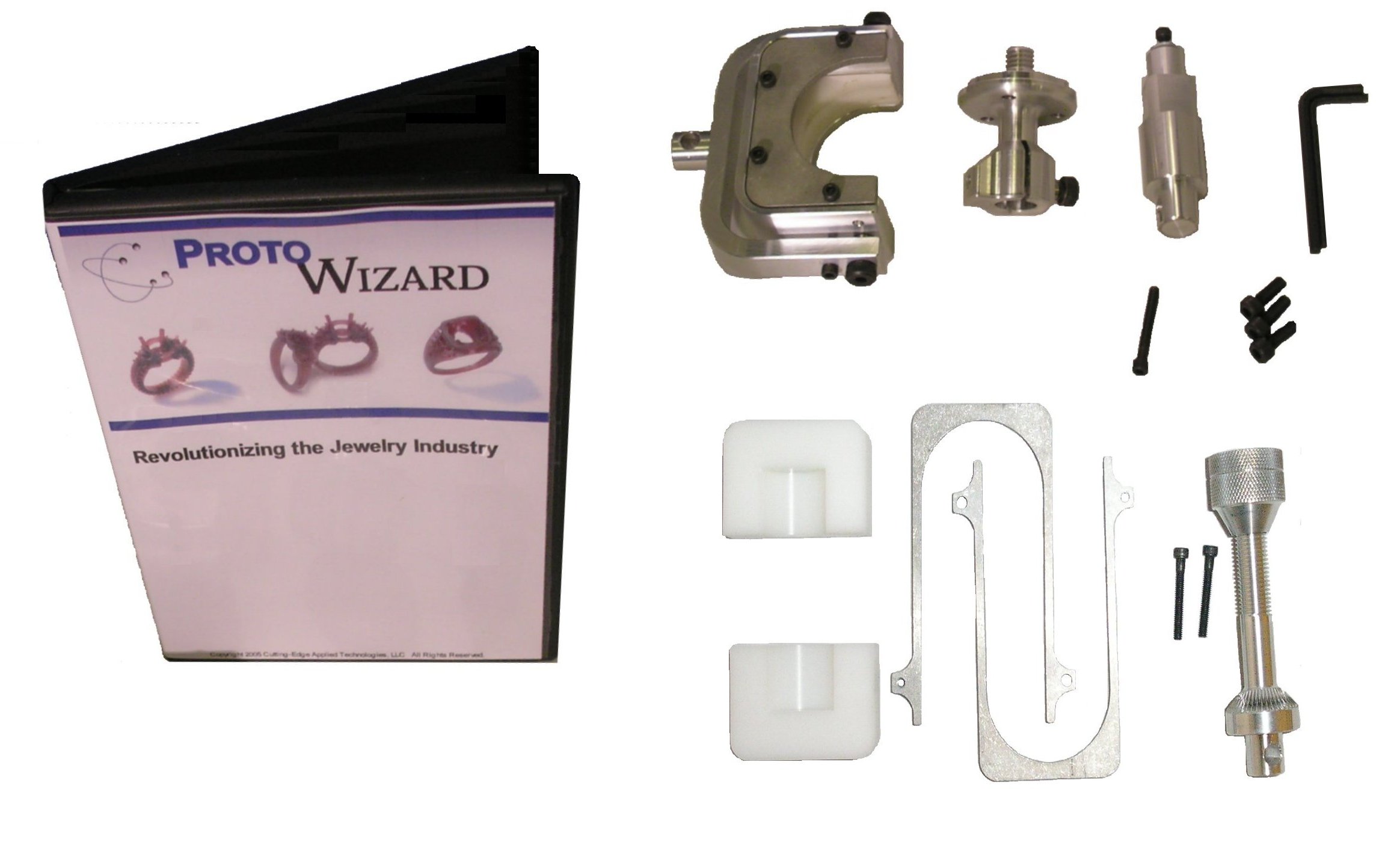

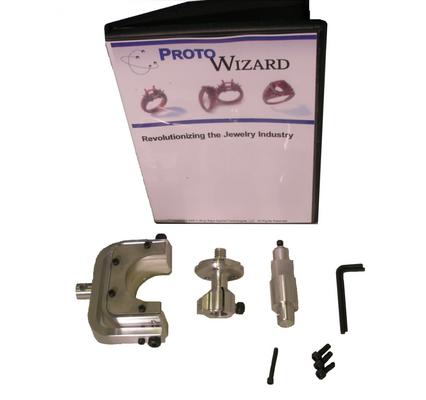

The protowizard kit includes the protowizard software, ring clamp, ring arbor, extension clamps. This basic kit will get you going with a stock JWX-10 or MDX-40 machine. $2250.00 - Machine Wizard Software
This utility replaces the Roland operations panel and dropout window. It includes speed override capabilities not present in the Roland panels. $325.00 - Cutting Edge Rotary Axis

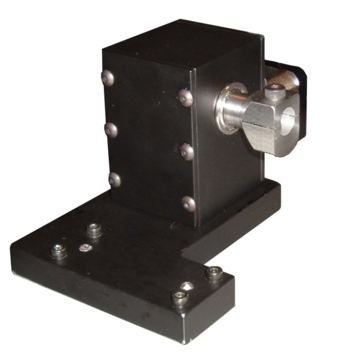

This replacement Rotary axis reduces the inherent rotary axis skew and slop present when using the combination of the Roland rotary axis and the ProtoWizard fixture. $1500.00 - Cutting Edge Tool Sensor
This replacement Tool Sensor is designed to reduce tool breakage. I've never seen a tool break yet with the current sensor if you keep it clean, but apparently there is a need for this replacement unit in some situations according to Cutting Edge. $450.00. - Three Sided Combo Fixture

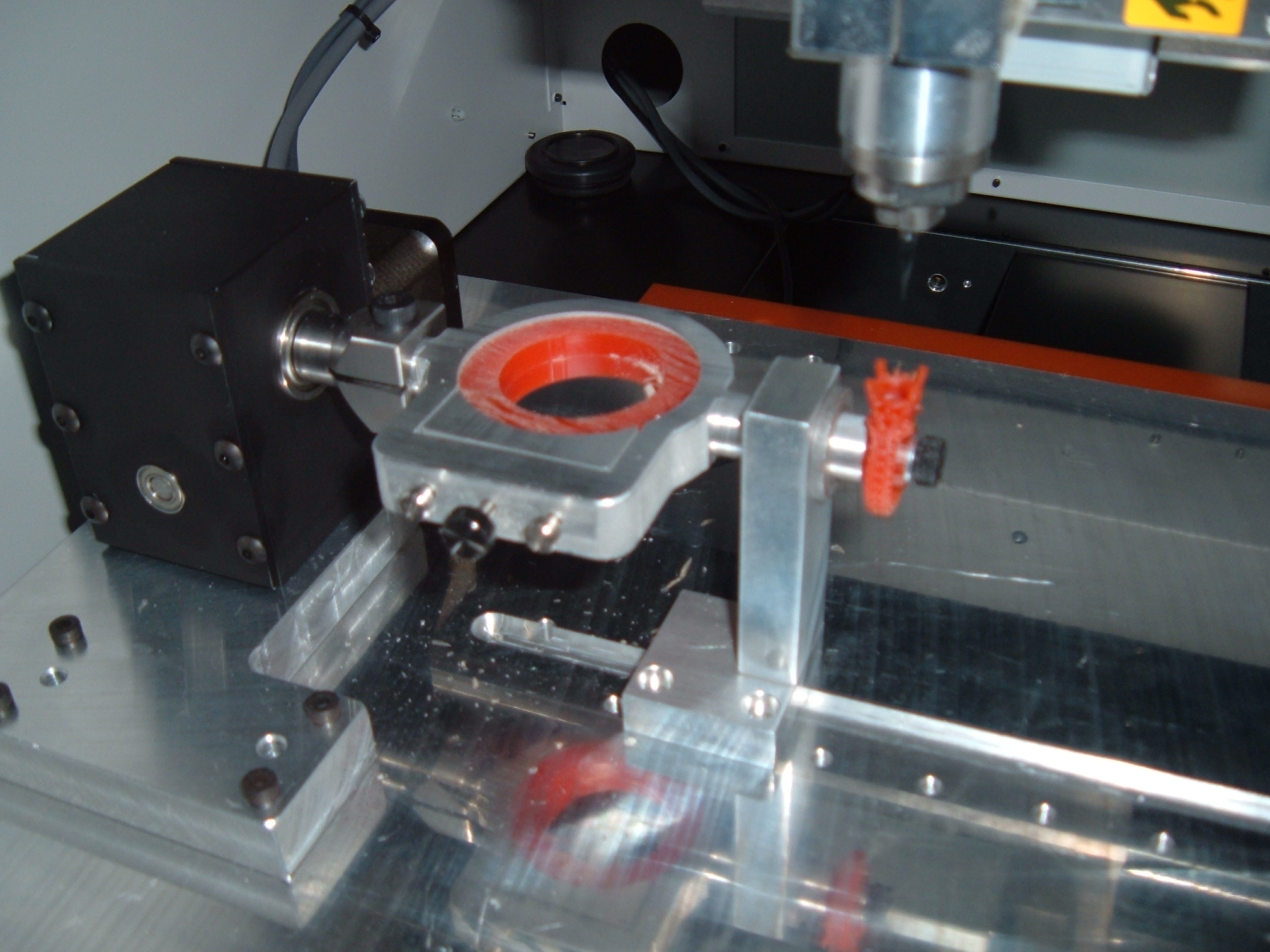

This is modeled after the new JWX-30 fixture, combining the Left/Right and Rotary cutting fixtures into one unit. $350.00. - MDX-40 Replacement Table
This gives you a complete Protowizard solution. At $4000 however, you're better off buying a JWX-30 instead of the MDX-40/ProtoWizard Table. - Protowizard 4.0 Upgrade
Cutting Edge has the 4.0 Upgrade available for the Protowizard. $275. So far Cutting Edge hasn't posted a changelog. I'd hold off purchasing this unless there is a clear reason to upgrade, which I don't see yet.
 |
 |
 |
 |
 |
 |
| protowizard basic kit | machine wizard | rotary axis | tool sensor | replacement table | 3-sided combo |
ProtoWizard Software Stages:
 |
 |
 |
 |
 |
| ring setup | core tab | tool database | rough toolpath | finish toolpath |
 |
 |
 |
 |

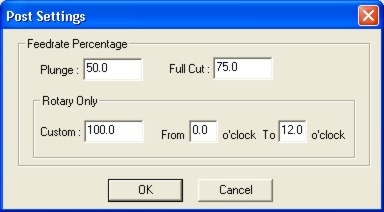

| od finish | toolpath post | macro insert | customize |
